MASTERING CABLING LENGTH: Basics of cable length and it's impact on Network Performance.
| | |
In medium to enterprise networks, understanding cabling length limitations can help ensure optimal network performance and reliability. While most of the focus is often placed on Ethernet cabling, it is equally important to understand the limitations of other forms of cabling used in such networks. In this article we will discuss the significance of cabling length in medium to enterprise networks and provide insights on why it is essential to comprehend these limitations across various cabling technologies.
| | | | |
Cabling length is a fundamental aspect of network design that can significantly affect overall performance. The longer the cable, the more potential there is for signal degradation, which can lead to slower data transmission rates and increased error rates. Understanding the basic principles of cabling length helps network professionals design more efficient and reliable networks. Signal attenuation refers to the loss of signal strength as it travels through the cable. This phenomenon becomes more pronounced with longer cables, resulting in weaker signals at the receiving end. In data transmission, this attenuation can cause errors, reduce data integrity, and necessitate retransmissions, ultimately impacting the network's efficiency and speed.

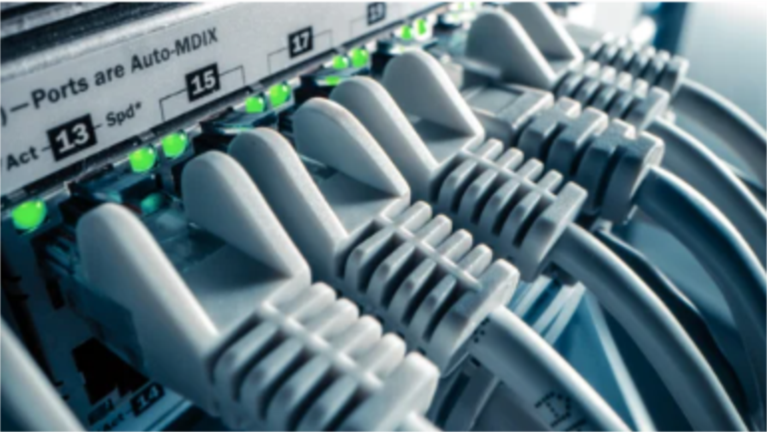

Ethernet cabling has well-defined length limitations to ensure proper signal transmission. For instance, the maximum length for a Cat5e or Cat6 cable in a gigabit Ethernet network is 100 meters (about 328 feet). Exceeding this limit can result in data loss and network instability. | | | | When Ethernet cables exceed their recommended lengths, several issues can arise. These include increased latency, higher error rates, and a greater likelihood of data packet collisions. Network administrators must be vigilant in monitoring and maintaining cabling lengths within specified limits to prevent these problems. Beyond Ethernet, different types of cabling have their own length limitations. Fiber optic cables, for example, can transmit data over much longer distances than copper cables due to their superior resistance to signal attenuation. Coaxial cables also have distinct length constraints that must be considered in network design. Each cabling technology has unique characteristics that | | | influence its length limitations. Fiber optic cables, while capable of longer runs, can be more expensive and delicate compared to copper cables. Coaxial cables, commonly used for cable television and internet, offer moderate length capabilities but are less flexible than Ethernet cables. Understanding these differences is essential for selecting the right cabling solution for specific network needs. | | | | | To maintain optimal performance, network administrators should adhere to recommended cabling lengths and regularly test their networks for signal integrity. Using high-quality cables and connectors, employing proper cable management techniques, and planning the network layout meticulously can help in mitigating issues related to cabling length. Managing cabling length in complex networks requires a strategic approach. Here are some practical tips: Use Patch Panels: They help in organizing cables and maintaining optimal lengths. Implement Structured Cabling Systems: These systems offer a standardized approach to cabling, reducing the risk of exceeding length limitations. Utilize Signal Boosters or Repeaters: These devices can extend the effective range of cables by amplifying the signal. | | | Mastering cabling length limitations in medium to enterprise networks is a critical aspect of ensuring a robust and efficient network infrastructure. By gaining a thorough understanding of cabling length guidelines and constraints, network professionals can proactively address potential issues and optimize network performance. Need help with your network for optimization? Let Alpha assess your network environment and then empower it building a resilient and high-performing network for your business or organization! | | | FAQs Why is understanding cabling length important in network design?
It is a good idea to have an understanding on cabling length. It can directly impact signal strength, data transmission speed, and overall network reliability. Exceeding recommended lengths can lead to significant performance degradation and connectivity issues. What are the typical Ethernet cabling length limitations?
For Cat5e and Cat6 Ethernet cables, the maximum length is typically 100 meters (328 feet) in a gigabit Ethernet network. Beyond this length, signal attenuation can cause data transmission errors and reduced network performance. How do fiber optic cables differ in length constraints compared to Ethernet?
Fiber optic cables have much longer length capabilities compared to Ethernet cables. They can transmit data up to 62.14 miles without significant signal loss, making them ideal for long-distance and high-bandwidth applications. Data transmissions can vary as fiber range is dependent on the end devices, the SFP laser power, and the type of fiber being used. What are some best practices for managing cabling length in large networks?
Best practices include using patch panels for organization, implementing structured cabling systems, regularly testing for signal integrity, and using high-quality cables and connectors. Employing signal boosters or repeaters can also help extend effective cabling lengths. How can exceeding cabling length limits impact network performance?
Exceeding cabling length limits can lead to increased signal attenuation, higher error rates, slower data transmission speeds, and overall network instability. These issues can cause frequent disconnects, data corruption, and reduced productivity.
